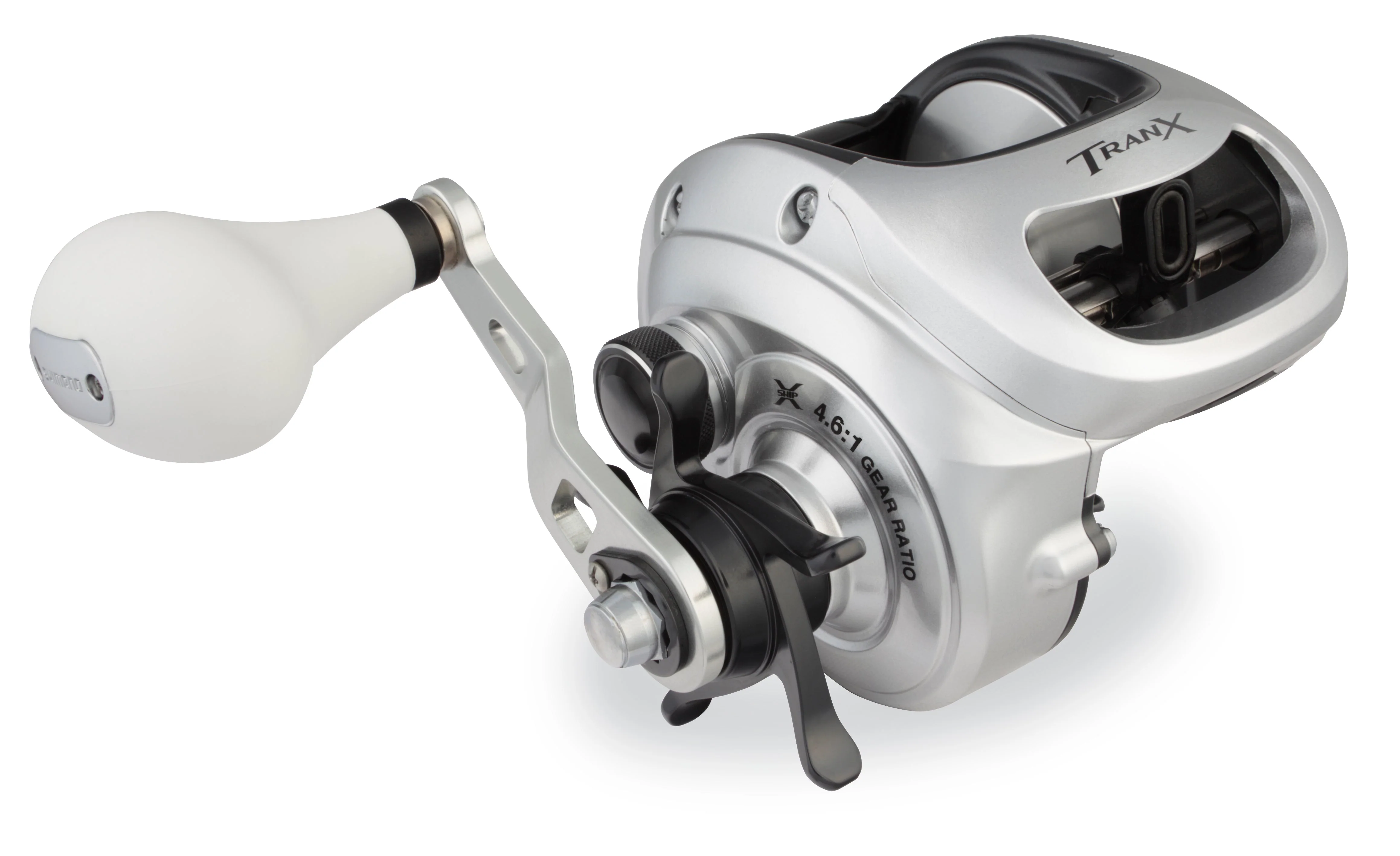

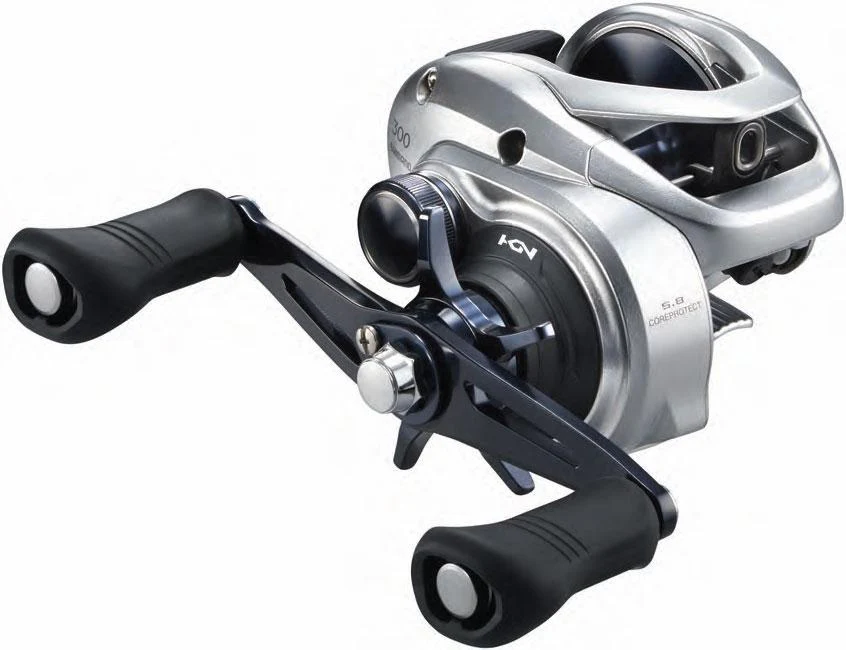

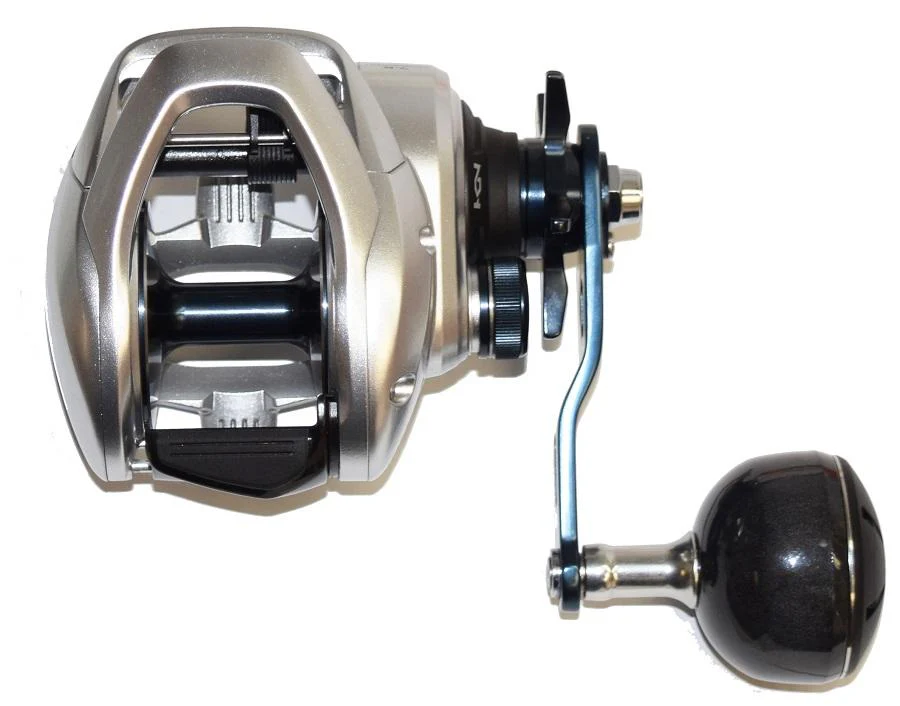

Shimano TranX Baitcasting Reel

Revolutionary design and shape provides the comfort of low profile with the capacity of a conventional reel. X-Ship & HEG technologies combine to provide massive cranking power with a smooth effortless retrieve. Offered in high gear (HG) and power gear (PG) models to cover a wide range of applications.

500HG

• Gear Type:High
• Line Capacity: 40 lbs x 120 yds
• Line Retrieve Per Crank: 43"
• Weight: 20 oz
• Max Drag: 25 lbs
• Bearings: 7 S-ARB + 1
• Gear Ratio: 6.6:1
• Right Hand Retrieval

500PG

• Gear Type: Power
• Line Capacity: 40 lbs x 120 yds
• Line Retrieve Perk Crank: 30”
• Weight 20 oz
• Max Drag: 25 lbs
• Bearings: 7 S-ARB + 1
• Gear Ratio: 4.6:1
• Right Hand Retrieval

Super Stopper anti-reverse provides the angler with instant hook setting power

Super Free Spool eliminates friction on the spool shaft during the cast

X-Ship provides improved gear durability and will enhance the casting performance
of the reel with lighter lures, and allow for longer casts

VBS uses centrifugal force rather than magnets to aid in controlling the cast. When turned on, the individual
brake weights are forced outward at the beginning of the cast when backlashes most often occur, causing friction
that reduces the speed of the spool. Once the spool speed begins to slow, the pressure with which the brake weights
contact the raceway lessens, allowing the spool to continue spinning

HEG eliminates flex in the drive train that causes gears to bind under pressure

S A-RB bearings feature shields on both sides of the bearings that reduce the possibility of salt or sand
inhibiting the bearing's rotation

Metal construction keep moving parts in precise alignment
